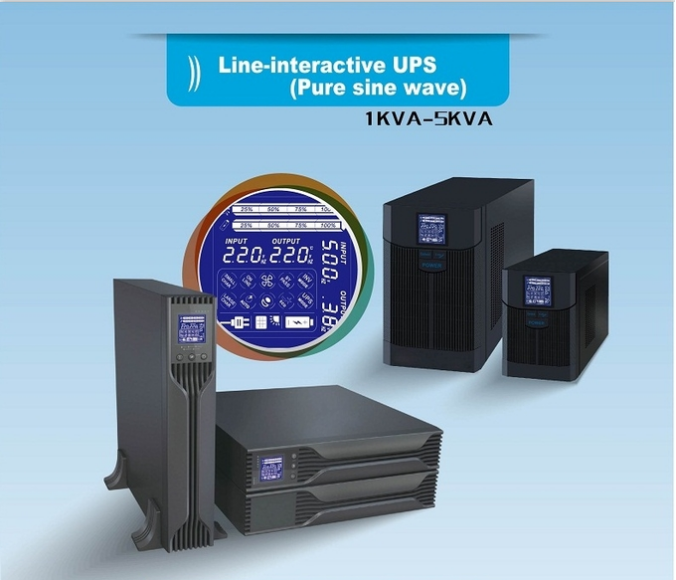

RTL Series 1KVA-5KVA Line-interactive Pure Sine Wave UPS

• Description of Modular Online UPS

• Pure Sine Wave Line-interactive UPS Power Supply Systems, 5kVA/3000W, Powerful Charging Pure Sine Wave UPS, 1000VA/ 1500VA/ 2000VA/ 3000VA/ 5000VA UPS

Specification of G Tech UPS​

•

• Capacity	1000VA/700W		1500VA/1050W		2000VA/1400W		3000VA/2100W		5000VA/3500W
  Display	LCD Display
  AC mode
  Input Voltage	145-275VAC
  Input Frequency	45-65Hz
  Output Voltage	200-240VAC
  Inverter mode
  Output Voltage	220VAC±5%
  Output Frequency	50±0.5% ; 60±0.5%
  Power Factor	0.7
  Output Wave Form	Pure Sine Wave
  Transfer time	Typical 2-6ms; 10ms MAX
  Overload	If 110%, then shut down within 60sec; If 120%, then shut down within 50sec.
  Over current protection	System shut down automatically within 20ms
  Battery type
  Type	Sealed maintenance-free lead-acid batteries
  DC Voltage	DC 24V (2group of parallel)				DC 48V (2group of parallel)				DC 48V (3group of parallel)
  Standard Configuration	Built in : 12V/7Ah*4	--------	Built in :12V/9Ah*4	---	Battery park: P12V/7Ah*8	----	Battery park: P12V/9Ah*8	---	Battery park: P12V/9Ah*12	---
  External DC Voltage	-----------	24vdc	-----------	24vdc	-----------	48vdc	-----------	48vdc	-----------	48vdc
  Physical characteristics
  Weight (N.W.)Kg	23.6	16.5	26.8	18.6	19.8	21.6	21.5	23.5	28.4	30.6
  Dimension(mm)	441*445*88								441*445*132

•

•

•
•
•

Our Service:

1% spares together with shipment for urgent issue.

All of the necessary documents such as drawing, manual etc.

We will provide the online service by mail

pure sine wave ups

ups sine wave inverter

1KVA-5KVA Pure Sine Wave Line Interactive UPS Rank Mount Installation Images
